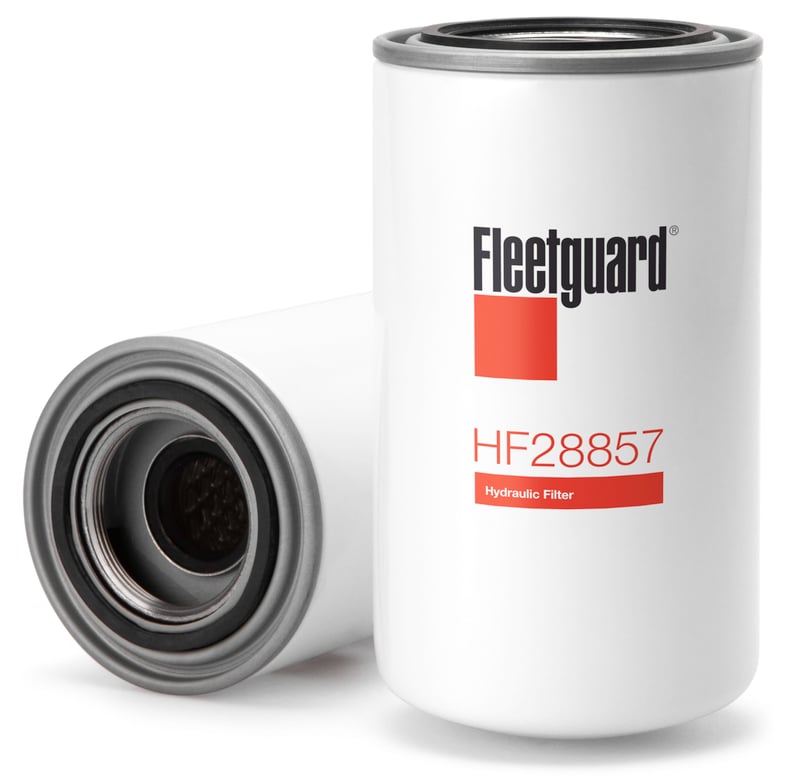

Fleetguard HF28857 Hydraulic Filter Spin-On
Fleetguard HF28857 Hydraulic Filter Spin-On
SKU / Part number: HF28857
Couldn't load pickup availability
The Fleetguard HF28857 hydraulic filter helps control contamination in precision hydraulic systems.
Key specifications
- Media Type: Cellulose
- Length: 6.87 inch / 174.50 mm
- Length / Overall Height: 6.83 inch / 173.50 mm
- Largest OD: 3.68 inch / 93.50 mm
- Thread Size: 2-16 UN-2B
- Particle Size at Beta 75: 16.00 micron (c)
- BPV OPENING DP: 36.26 PSI / 250.00 kPa
- Gasket Inside Diameter: 2.44 inch / 62.00 mm
- Seam OD: 3.68 in / 93.50 mm
- TWA MICRON @ BETA=2: 6.00 micron
- TWA MICRON @ BETA=75: 18.00 micron
- Gasket OD: 2.76 inch / 70.00 mm
- Standpipe: NO
- TWA MICRON @ BETA=20: 12.00 micron
- Pressure Valve: Yes
- Applicable Region: North America, China, Europe, South America, South East Asia, South Pacific
Cross-reference part numbers
- Donaldson: P550445
Cross-reference information is a guide only. Confirm the equipment manufacturer's recommendations and the specific application before ordering.
Fleetguard part number: HF28857
